What's New in Talos 1.2

List of new and shiny features in Talos Linux.

See also upgrade notes for important changes.

Component Updates

  • Linux: 5.15.64
  • Flannel 0.19.1
  • containerd 1.6.8
  • runc: v1.1.4
  • Kubernetes: v1.25.0

Talos is built with Go 1.19.

Kubernetes

Control Plane Labels and Taints

Talos now defaults to node-role.kubernetes.io/control-plane label/taint.

On upgrades Talos now removes the node-role.kubernetes.io/master label/taint on control-plane nodes and replaces it with the node-role.kubernetes.io/control-plane label/taint. Workloads that tolerate the old taints or have node selectors with the old labels will need to be updated.

Previously Talos labeled control plane nodes with both control-plane and master labels and tainted the node with master taint.

Scheduling on Control Plane Nodes

Machine configuration .cluster.allowSchedulingOnMasters is deprecated and replaced by .cluster.allowSchedulingOnControlPlanes. The .cluster.allowSchedulingOnMasters will be removed in a future release of Talos. If both .cluster.allowSchedulingOnMasters and .cluster.allowSchedulingOnControlPlanes are set to true, the .cluster.allowSchedulingOnControlPlanes will be used.

Control Plane Components

Talos now run all Kubernetes Control Plane Components with the CRI default Seccomp Profile and other recommendations as described in KEP-2568.

k8s.gcr.io Registry

Talos now defaults to adding a registry mirror configuration in the machine configuration for k8s.gcr.io pointing to both registry.k8s.io and k8s.gcr.io unless overridden.

This is in line with the Kubernetes 1.25 release having the new registry.k8s.io registry endpoint.

This is only enabled by default on newly generated configurations and not on upgrades. This can be enabled with a machine configuration as follows:

machine:
  registries:
    mirrors:
      k8s.gcr.io:
        endpoints:
          - https://registry.k8s.io
          - https://k8s.gcr.io

seccomp Profiles

Talos now supports creating custom seccomp profiles on the host machine which in turn can be used by Kubernetes workloads. It can be configured in the machine config as below:

machine:
  seccompProfiles:
    - name: audit.json
      value:
        defaultAction: SCMP_ACT_LOG
    - name: deny.json
      value: {"defaultAction":"SCMP_ACT_LOG"}

This profile data can be either configured as a YAML definition or as a JSON string.

The profiles are created on the host under /var/lib/kubelet/seccomp/profiles.

Default seccomp Profile

Talos now runs Kubelet with the CRI default Seccomp Profile enabled. This can be disabled by setting .machine.kubelet.defaultRuntimeSeccompProfileEnabled to false.

This feature is not enabled automatically on upgrades, so upgrading to Talos v1.2 needs this to be explicitly enabled.

See documentation for more details.

Machine Configuration

Strategic Merge Patching

In addition to JSON (RFC6902) patches Talos now supports strategic merge patching.

For example, machine hostname can be set with the following patch:

machine:
  network:
    hostname: worker1

Patch format is detected automatically.

talosctl apply-config

talosctl apply-config now supports patching the machine config file in memory before submitting it to the node.

Networking

Bridge Support

Talos now supports configuration of Linux bridge interfaces:

machine:
  network:
    interfaces:
      - interface: br0
        bridge:
          stp:
            enabled: true
          interfaces:
            - eth0
            - eth1

See configuration reference for more details.

VLANs

Talos now supports dracut-style vlan kernel argument to allow installing Talos Linux in networks where ports are not tagged with a default VLAN:

vlan=eth1.5:eth1 ip=172.20.0.2::172.20.0.1:255.255.255.0::eth1.5:::::

Machine configuration now supports specifying DHCP options for VLANs.

Stable Default Hostname

Talos now generates the default hostname (when there is no explicitly specified hostname) for the nodes based on the node id (e.g. talos-2gd-76y) instead of using the DHCP assigned IP address (e.g. talos-172-20-0-2).

This ensures that the node hostname is not changed when DHCP assigns a new IP to a node.

Note: the stable hostname generation algorithm changed between v1.2.0-beta.0 and v1.2.0-beta.1, please take care when upgrading from versions >= 1.2.0-alpha.1 to versions >= 1.2.0-beta.1 when using stable default hostname feature.

Packet Capture

Talos now supports capturing packets on a network interface with talosctl pcap command:

talosctl pcap --interface eth0

Cluster Discovery and KubeSpan

KubeSpan Kubernetes Network Advertisement

KubeSpan no longer by default advertises Kubernetes pod networks of the node over KubeSpan. This means that CNI should handle encapsulation of pod-to-pod traffic into the node-to-node tunnel, and node-to-node traffic will be handled by KubeSpan. This provides better compatibility with popular CNIs like Calico and Cilium.

Old behavior can be restored by setting .machine.kubespan.advertiseKubernetesNetworks = true in the machine config.

Kubernetes Discovery Backend

Kubernetes cluster discovery backend is now disabled by default for new clusters. This backend doesn’t provide any benefits over the Discovery Service based backend, while it causes issues for KubeSpan enabled clusters when control plane endpoint is KubeSpan-routed.

For air-gapped installations when the Discovery Service is not enabled, Kubernetes Discovery Backend can be enabled by applying the following machine configuration patch:

cluster:
  discovery:
    registries:
      kubernetes:
        disabled: false

etcd

Advertised and Listen Subnets

Machine configuration setting cluster.etcd.subnet is deprecated, but still supported.

Two new configuration settings are introduced to control precisely which subnet is used for etcd peer communication:

cluster:
  etcd:
    advertisedSubnets:
       - 10.0.0.0/24
    listenSubnets:
       - 10.0.0.0/24
       - 192.168.0.0/24

The advertisedSubnets setting is used to control which subnet is used for etcd peer communication, it will be advertised by each peer for other peers to connect to. If advertiseSubnets is set, listenSubnets defaults to the same value, so that etcd only listens on the same subnet as it advertises. Additional subnets can be configured in listenSubnets if needed.

Default behavior hasn’t changed - if the advertisedSubnets is not set, Talos picks up the first available network address as an advertised address and etcd is configured to listen on all interfaces.

Note: most of the etcd configuration changes are accepted on the fly, but they are fully applied only after a reboot.

CLI

Tracking Progress of API Calls

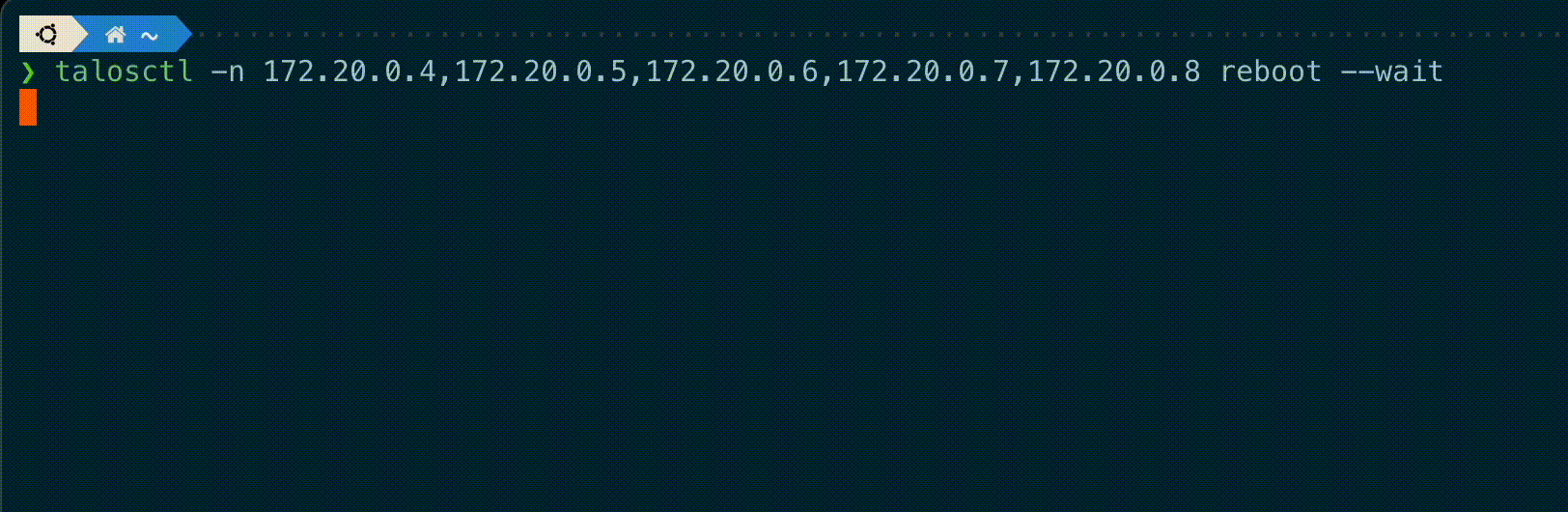

talosctl subcommands shutdown, reboot, reset and upgrade now have a new flag --wait to wait until the operation is completed, displaying information on the current status of each node.

A new --debug flag is added to these commands to get the kernel logs output from these nodes if the operation fails.

track-cli-action-progress

Generating Machine Config from Secrets

It is now possible to pre-generate secret material for the cluster with talosctl gen secrets:

talosctl gen secrets -o cluster1-secrets.yaml

Secrets file should be stored in a safe place, and machine configuration for the node in the cluster can be generated on demand with talosctl gen config:

talosctl gen config --with-secrets cluster1-secrets.yaml cluster1 https://cluster1.example.com:6443/

This way configuration can be generated on demand, for example with configuration patches. Nodes with machine configuration generated from the same secrets file can join each other to form a cluster.

Integrations

Talos API access from Kubernetes

Talos now supports access to its API from within Kubernetes.

It can be configured in the machine config as below:

machine:
  features:
    kubernetesTalosAPIAccess:
      enabled: true
      allowedRoles:
        - os:reader
      allowedKubernetesNamespaces:
        - kube-system

This feature introduces a new custom resource definition, serviceaccounts.talos.dev. Creating custom resources of this type will provide credentials to access Talos API from within Kubernetes.

The new CLI subcommand talosctl inject serviceaccount can be used to configure Kubernetes manifests with Talos service accounts as below:

talosctl inject serviceaccount -f manifests.yaml > manifests-injected.yaml
kubectl apply -f manifests-injected.yaml

See documentation for more details.

Migration

Migrating from kubeadm

talosctl gen command supports generating a secrets bundle from a Kubernetes PKI directory (e.g. /etc/kubernetes/pki).

This secrets bundle can then be used to generate a machine config.

This facilitates migrating clusters (e.g. created using kubeadm) to Talos.

talosctl gen secrets --kubernetes-bootstrap-token znzio1.1ifu15frz7jd59pv --from-kubernetes-pki /etc/kubernetes/pki
talosctl gen config --with-secrets secrets.yaml my-cluster https://172.20.0.1:6443

Platform Updates

Metal

The kernel parameter talos.config can now substitute system information into placeholders inside its URL query values.

This example shows all supported variables:

http://example.com/metadata?h=${hostname}&m=${mac}&s=${serial}&u=${uuid}

Extensions

NVIDIA GPU support promoted to beta

NVIDIA GPU support on Talos has been promoted to beta and SideroLabs now publishes the NVIDIA Open GPU Kernel Modules as a system extension making it easier to run GPU workloads on Talos. Refer to enabling NVIDIA GPU support docs here:

Deprecations

--masters flag on talosctl cluster create is deprecated. Use --controlplanes instead.

Machine configuration .cluster.allowSchedulingOnMasters is deprecated and replaced by .cluster.allowSchedulingOnControlPlanes.
